To be able to interpret the results after building a TLE (or several ones), it is possible to use the “Plots” panel.

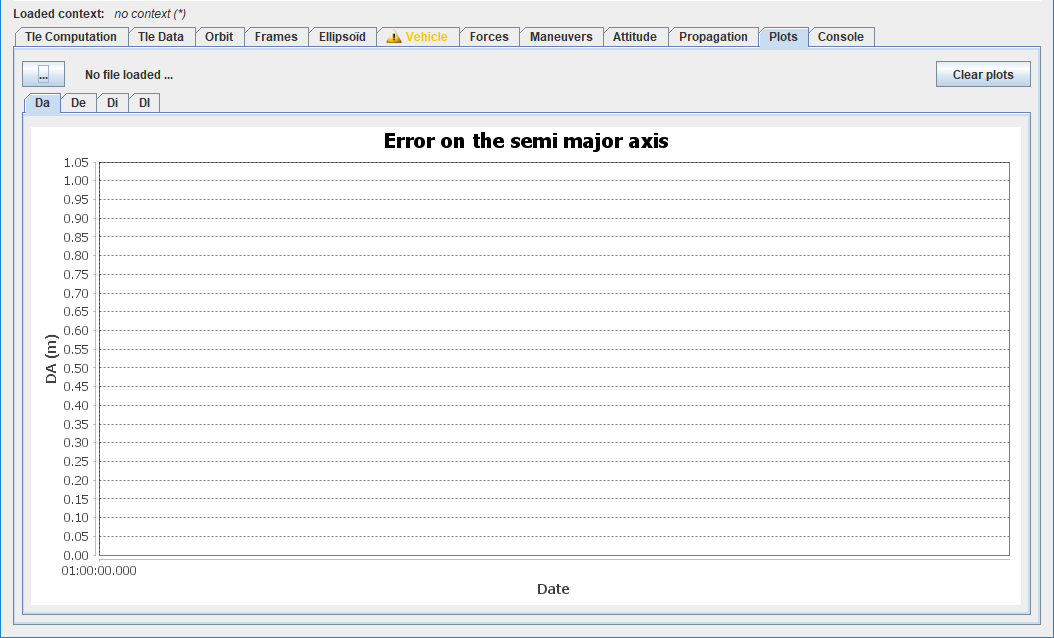

By default, no results are displayed …
So, you will have to push on the Fichier:LoadButton button in order to select a result file.
The names of the files shall start by “GTM_DIF” and get the “.txt” suffix.
Four kind of plots are available giving the differences between the simulated trajectory and the one obtained using the created TLE all along the simulation:
- difference on the semi-major axis (in meters).
- difference on the eccentricity.
- difference on the inclination (in degrees).
- difference on the longitude as the sum of the perigee argument, the RAAN and the true anomaly (in degrees).

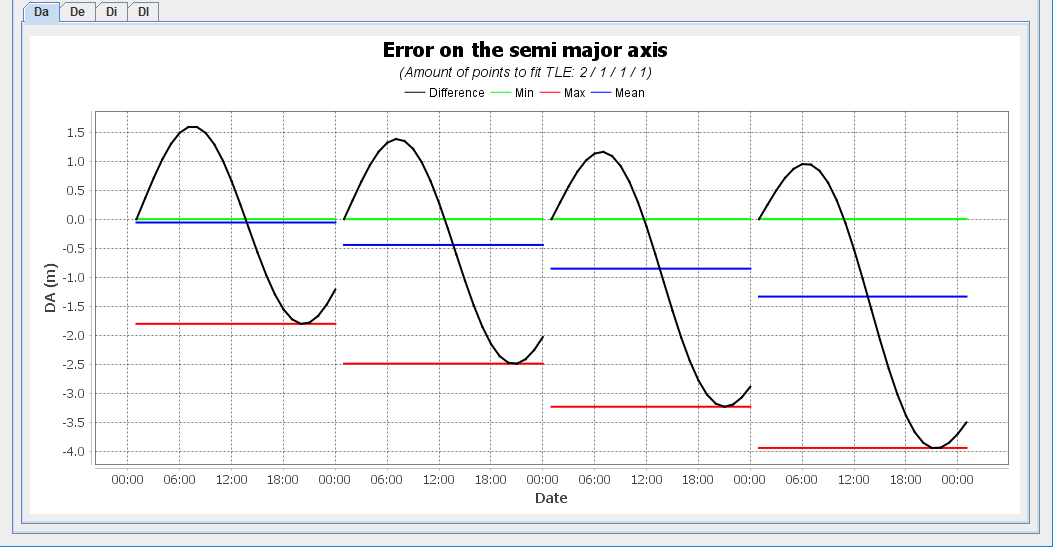

On each plot:
- a subtitle will indicate the amount of points used to fit the TLE(s) (see TLE computations options)
- the minimum, maximum and mean values will be respectively plotted with green, red and blue lines.
